- DIN 2344
Standards : X40CrMoV5
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.32 – 0.45 |
| Chromium (Cr) | 4.75 – 5.50 |
| Molybdenum (Mo) | 1.10 – 1.75 |
| Vanadium (V) | 0.80 – 1.20 |
| Silicon (Si) | 0.80 – 1.20 |
| Manganese (Mn) | 0.20 – 0.50 |
| Iron (Fe) | Balance |
Grade Brief
H13 is the most widely used hot work tool steel, belonging to the Cr-Mo-V alloy family. It offers high wear resistance, toughness, and excellent hot strength, making it suitable for both hot and cold work applications. Due to its high chromium content, H13 maintains hardness at elevated temperatures and resists thermal fatigue, heat cracking, and shock loading.
It is commonly supplied in the annealed condition, but pre-hardened H13 (460–500 BHN) is also available for specific applications.
Key Features
- Excellent resistance to thermal shock and heat checking.
- High toughness and ductility even in hot conditions.
- Good red hardness and resistance to softening at high temperatures.
- Superior wear and abrasion resistance.
- Consistent machinability with uniform hardness during processing.
- Can withstand rapid cooling cycles.

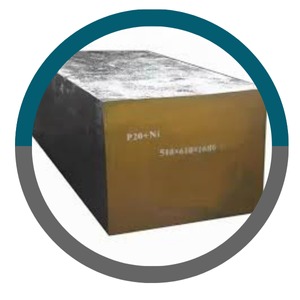

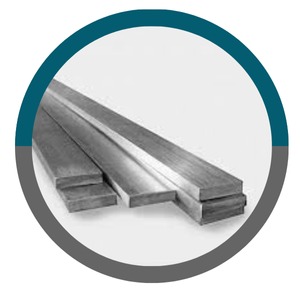

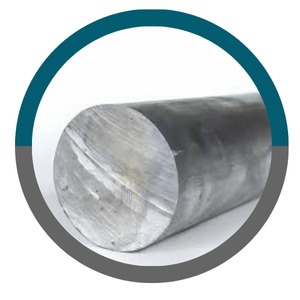

Mode of Supply
Kuber Multi Metals is the largest stockiest and supplier of H13 tool steel in flat, square and round bar. We provide steel in all sizes as your requirements. H13 die steel is available in flat, square and round shape. Consult our team who will assist you for h13 steel query.
Mechanical Properties
| Property | Value |
|---|---|
| Hardness (quenched & tempered) | 44 – 52 HRC |
| Pre-Hardened Condition | 460 – 500 BHN |
| Tensile Strength | ~1,500 – 1,900 MPa |
| Yield Strength | ~1,200 – 1,500 MPa |
| Impact Strength (Charpy V-Notch) | High toughness retained at elevated temps |

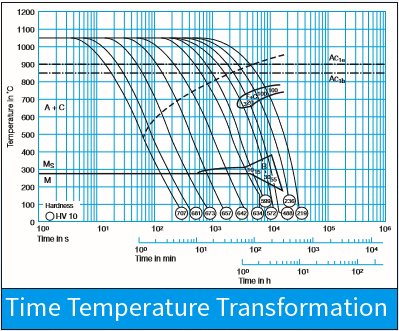

Heat Treatment & Processes
| Process | Temperature (°C) | Notes |
|---|---|---|
| Annealing | 840 – 880°C Slow furnace cooling |
Delivers ~200 HB max |
| Stress Relieving | 650 – 700°C | After machining, before hardening |
| Hardening | 1,020 – 1,040°C | Oil, air, or vacuum quench |
| Tempering | 540 – 650°C | Usually double or triple tempering for stability |
Equivalent Grades
| Standard | Designation |
|---|---|
| AISI | H13 |
| DIN | 1.2344 / X40CrMoV5-1 |
| JIS | SKD61 |
Application
Die casting dies (aluminum, magnesium, zinc), Extrusion tools (dies, mandrels, liners), Forging dies and hot shear blades, Ejector pins, shrink-fit chucks, and apparatus holders, Hot punches and inserts, Plastic molds requiring high strength and wear resistance.
